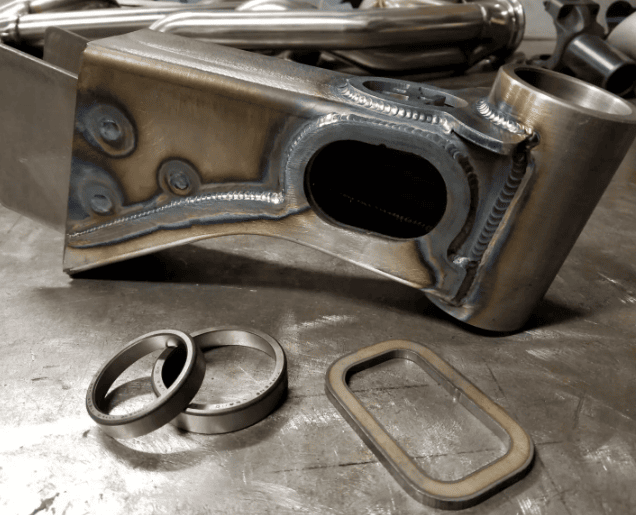

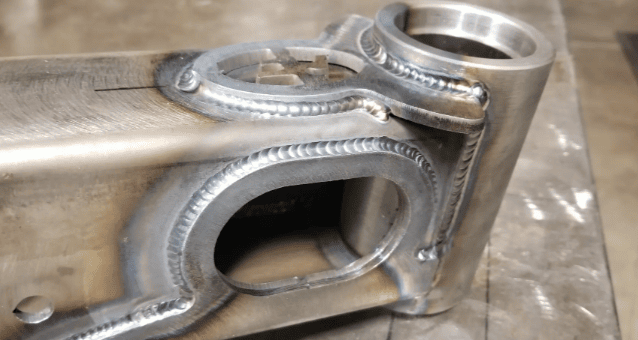

Our 30″ wheel weld on neck is designed around American Suspension 30/32 rake trees. It’s made from 10ga. 1018 cold rool streel and tig welded inside and out for a superior strength and style. With this neck you will receive the weld on neck, both top and bottom bearing race cups, cut template and a frame doubler plate. The doubler plate is something extra that we give to those that want to run thier wires through the frame. Weld the doubler in your desired location under the tank and cut open the hole. The doubler plate adds strength to the cut edge of the new wire hole. With the combination of our neck, American Suspension trees and front air ride this setup will produce a nice level bike with 1″ of ground clearance aired down.

30 Standard w/ RG Bracket 2009 & Up 12-3/4” Long X 3-3/4″ Wide X 5-1/2″ Tall (9lbs and 5 oz)

30 Layframe 15-3/8″ Long X 4″ Wide X 6-1/8″ Tall (11lbs and 15.0 oz)
