AFK Center stand will work with cross under exhaust. It will also work with all air ride units. Not indended for audio bikes. Must have air ride to install all AFK electric center stands.

AFK Electric Center Stand fits 2017-Present Touring Models. AFK Center Stand was designed for cross over exhaust. Also see first electric center stand with legs motion forwards. Sold in Gloss Black finish.

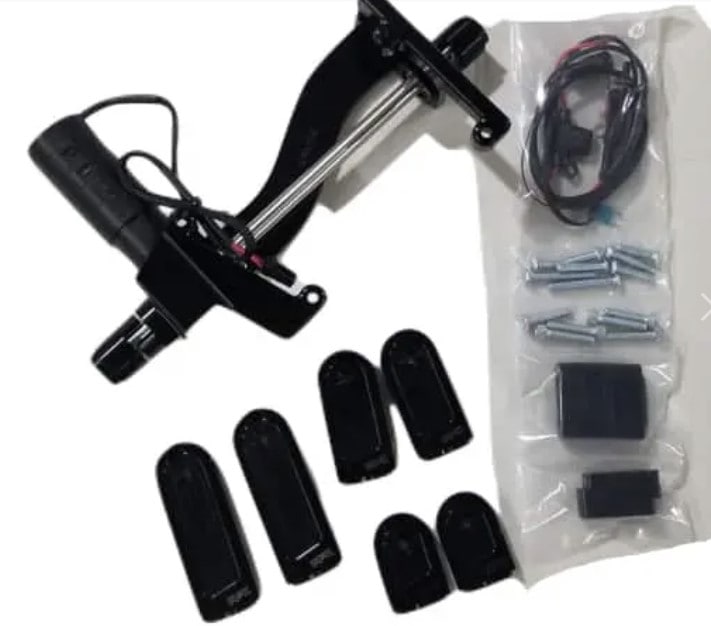

Our AFK Touring Electric Stands comes with two set of leg kits. 90% of our customers utilize Kit #2. All non-rake bikes are Kit#2.

Kit#1- L1 set & L2 set Kit #2- L2 set & L3 set

L3 Height is approximately 3-1/2″/ L3 Leg range with standard pack is approximately 3-1/2″-5″ (measurement from bolt hole)

L2 Height is approximatley 2-1/2″/ L2 Leg range with standard pack is approximately 2-1/2″-4″

L1 Height is approximatley 1-1/2″/ L1 Leg range with standard pack is approximately 1-1/2″-3″

(AFK Touring Electric Center Stand (Standard Pack) comes with three sets of stackable/inserts (shims) and one set of end caps.)

Additional stackable/inserts (shims) may be added.

Here is a list of confirmed stock exhaust that is compatibile with AFK Touring Center Stand: Stock D&D w/ghost pipe, Stock Reinhart, Stock Bassani w/ghost pipe, TAB Performance, & VAN HINES POWER DUALS

WILL NOT WORK WITH TRUE DUAL BASSANI PIPES AND KHROME WERKS TRUE DUALS 2 TO 2 HEAD PIPE EXHAUST. KHROME WERKS SLIPS ON ARE OK. ALSO WILL NOT WORK WITH PRIMARY BELT DRIVE.

ALTERING MOTOR, MOTOR WIRE, AND HARNESS VOIDS WARRANTY.

Read Here for Specs and More Tips:

Oil Pan Fasteners Torque 132-156in-lbs 14.9-17.6 N-M
Some Exhaust Systems Will Require the Slip on to be Removed and Loosen the Header to Get More Clearance for the Stand
On the 2024 With Stock Headers You Do Not Have to Remove This Right Side Pipe
