.4 EVOX2 – 2 OHMS

Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 131 WRMS

Bridge Power @ 2Ω: 2 X 600WRMS
Bridge Power @ 4Ω: 2 X 396WRMS

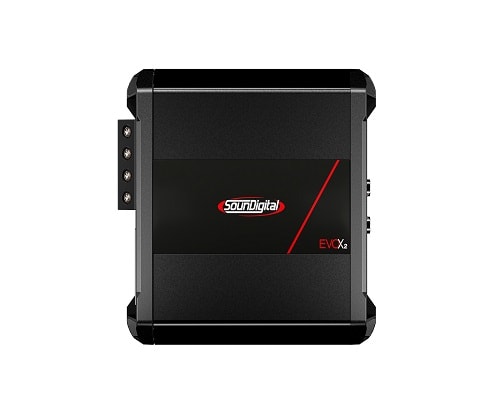

1200.4 EVOX2 – 4 OHMS

Power @ 1Ω: N/ A
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS

Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS

Operating Voltage:

8V – 16V

Input Sensitivity:

0.2 ~ 4V

Current Draw (Music):

49A

Current Draw (Max):

98A

Recommended Fuse (Music):

70A

Recommended Battery (Music):

70A

Total Efficiency:

85%

Damping Factor:

200

Power Cable:

16mm²(5 AWG)

Audio Output Cable:

2 X 2mm² (12 AWG)

Frequency Response (-3dB):

5Hz – 22kHz

SNR:

91dB

Crossover

LPF: 45Hz – 850Hz
HPF: 45Hz – 850Hz

Width:

5.3 in / 13,6 cm

Length:

7 in / 18,2 cm

Height:

2.1 in / 5,5 cm
